San Jose UI Yaml
Referring page: Dynamic Weather Dashboard

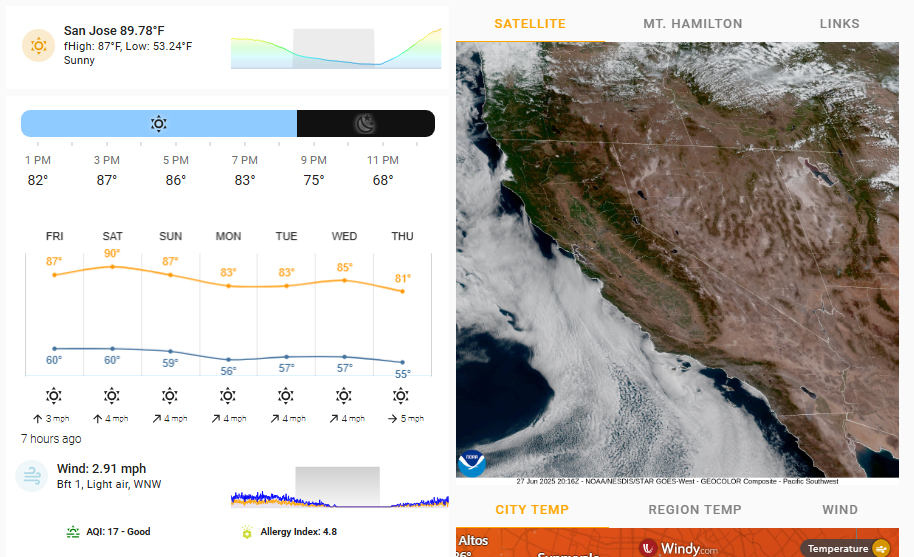

This is the main block of UI code for the San Jose portion of the weather dashboard I discuss in my [blog post](insert link).
UI YAML:
#############################################################
title: Climate
id: climate
icon: mdi:weather-partly-cloudy
#background: >-
# center / cover no-repeat fixed
# url('https://mthamilton.ucolick.org/hamcam/Cam1.ts.JPG')
panel: true
cards:
#- type: custom:layout-card
# layout: horizontal
# min_columns: 1
# max_columns: 3
# #column_num: 3
# sidebar_column: false
# cards:
- type: custom:tabbed-card
tabs:
#BEGIN SAN JOSE
- card:
type: custom:layout-card
layout: horizontal
min_columns: 1
max_columns: 2
column_num: 2
sidebar_column: false
cards:
- type: custom:stack-in-card
mode: horizontal
cards:
- type: custom:layout-card
layout_type: grid
layout:
grid-template-columns: 50% 50%
grid-template-rows: 1
grid-template-areas: |
"z01 z02"
cards:
- type: custom:mushroom-template-card
entity: sensor.gw1100b_outdoor_temperature
primary: San Jose {{ states('sensor.outdoor_temperature_merged') }}°F
secondary: |
{% set curr = states("sensor.outdoor_temperature_merged") | float() %}
{% set high = states("sensor.max_temperature_san_jose_today") | float() %}
{% set low = states("sensor.min_temperature_san_jose_today") | float () %}
{% set fcst = state_attr('sensor.weather_forecast_san_jose_daily','forecast')[0].temperature %}
{% set hour = now().strftime('%H') | int %}
{% set sol_noon_hour = as_timestamp (states("sensor.rancho_nacho_sun_solar_noon")) | timestamp_custom('%H') | int %}
{% set coverage = states('sensor.sky_coverage_san_jose') %}
{% from 'weather.jinja' import secondary_label_hi_lo_order %}
{{ secondary_label_hi_lo_order(curr, high, low, fcst, hour, sol_noon_hour, coverage) }}
multiline_secondary: true
icon: |-
{% from 'weather.jinja' import icon_weather_type %}
{{ icon_weather_type('weather.pw_san_jose') }}
icon_color: |-
{% from 'weather.jinja' import icon_color_temp %}
{{ icon_color_temp('sensor.outdoor_temperature_merged') }}
tap_action:
action: fire-dom-event
browser_mod:
service: browser_mod.popup
data:
title: San Jose Detail
content:
type: vertical-stack
cards:
!include weather/popup_stack_san_jose.yaml
#begin mini graph
- type: custom:decluttering-card
template: mini_graph_title_card
variables:
- entity_1: sensor.outdoor_temperature_merged
- entity_2: sensor.night_san_jose
- upper_bound: ~85
- lower_bound: ~50
- hours: 24
view_layout:
grid-area: z02
# ***** BEGIN SAN JOSE ALERTS & NOTIFICATIONS *****
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.pw_san_jose_alerts
above: 0
#below: 1
card:
type: custom:decluttering-card
template: nws_weather_alert
variables:
- alert_sensor: sensor.pw_san_jose_alerts
- type: conditional
conditions:
- condition: state
entity: binary_sensor.rain_forecasted_next_hour
state: "on"
- condition: numeric_state
entity: sensor.gw1100b_rain_rate
below: 0.01
card:
type: custom:decluttering-card
template: weather_warning_card
variables:
- label: Possible rain in next hour
- icon: 'mdi:weather-pouring'
# ***** Begin San Jose Forecast
- type: custom:vertical-stack-in-card
cards:
- type: custom:hourly-weather
entity: weather.pw_san_jose
num_segments: 12 # optional, defaults to 12
name: #Next 12 hours # optional, defaults to "Hourly Weather"
#show_wind: true
icons: true
#*** Begin SJ daily Forecast ***
- type: custom:weather-chart-card
entity: weather.pw_san_jose
temp: sensor.outdoor_temperature_merged
#title: San Jose
show_main: false
#show_time: true
#show_day: true
#show_date: true
show_temperature: false
show_attributes: false
show_last_changed: true
animated_icons: false
icon_style: style2
icon_size: 30
forecast:
style: style2
# ***** Begin San Jose Wind Stack *****
- type: custom:vertical-stack-in-card
cards:
- type: custom:decluttering-card
template: wind_detail_popup
variables:
- wind_speed: sensor.gw1100b_wind_speed
- wind_direction: sensor.gw1100b_wind_direction
- wind_gust: sensor.gw1100b_wind_gust
- gust_base: sensor.max_wind_gust_san_jose_today
- gust_base_attrib_tw: max_wind_gust_san_jose_this_week
- gust_base_attrib_tm: max_wind_gust_san_jose_this_month
- gust_base_attrib_ty: max_wind_gust_san_jose_this_year
- gust_base_attrib_at: max_wind_gust_san_jose_ath
- relative_pressure: sensor.gw1100b_relative_pressure
- windrose_image: /local/images/house_sat_view_v2.png
- type: custom:stack-in-card
cards:
- type: custom:layout-card
layout_type: grid
layout:
grid-template-columns: 10% 40% 40% 10%
grid-template-rows: 1
grid-template-areas: |
"zone1 zone2 zone3 zone4"
cards:
# ***** BEGIN AQI *****
- !include weather/san_jose_aqi_ui.yaml
# ***** BEGIN Allergy Index *****
- !include weather/san_jose_allergy_index_ui.yaml
# ***** BEGIN RAIN STACK *****
- type: custom:vertical-stack-in-card
cards:
- type: custom:stack-in-card
mode: horizontal
cards:
- type: custom:mushroom-template-card
#entity: sensor.gw1100b_outdoor_temperature
primary: |-
{% set rt = states('sensor.rain_today_san_jose') | float() %}
{% if rt > 0 %}
Rain Today: {{ rt | round(2) }} in
{% else %}
Last Rain: {{ states('sensor.last_rain_san_jose') | round(2) }} in
{% endif%}
secondary: |-
{% set r_today = states('sensor.rain_today_san_jose') | float() %}
{% set r_today_time = state_attr('sensor.rain_today_san_jose','last_updated') %}
{% set last_rain = state_attr('sensor.last_rain_san_jose','last_rain_updated') %}
{% set last_rain_date = as_datetime(last_rain).date() %}
{% set days_ago = (now().date() - last_rain_date).days %}
{% set hours_ago = (today_at() - as_datetime(r_today_time)).hours %}
{% set time_diff = now() - as_datetime(r_today_time) %}
{% set mins_diff = (time_diff.total_seconds() / 60) | round(0) %}
{% if days_ago >= 2 and r_today == 0 %}
{{ days_ago }} days ago, on {{ as_timestamp(last_rain) | timestamp_custom('%B %-d @%-I:%M %p') }}
{% elif days_ago == 1 and r_today == 0 %}
Yesterday {{ as_timestamp(last_rain) | timestamp_custom('@%-I:%M %p') }}
{% elif r_today > 0 and mins_diff >= 60 %}
{% set hours_diff = (mins_diff / 60 ) | round (0,'floor') %}
{% if mins_diff - (hours_diff * 60) <= 15 %}
{{ hours_diff }} hours ago at {{ as_timestamp(r_today_time) | timestamp_custom('@%-I:%M %p') }}
{% else %}
{{ hours_diff }}+ hours ago at {{ as_timestamp(r_today_time) | timestamp_custom('@%-I:%M %p') }}
{% endif %}
{% elif r_today > 0 and mins_diff >= 15 %}
{{ mins_diff }} minutes ago at {{ as_timestamp(r_today_time) | timestamp_custom('@%-I:%M %p') }}
{% else%}
Raining Now
{% endif%}
icon: mdi:weather-rainy
icon_color: |-
{% set rt = states('sensor.rain_today_san_jose') | float() %}
{% if rt > 0 %}
blue
{% else%}
grey
{% endif %}
tap_action:
action: fire-dom-event
browser_mod:
service: browser_mod.popup
data:
title: Rain Detail
content:
type: vertical-stack
cards:
- type: custom:decluttering-card
template: rain_detail
variables:
- rain_today: sensor.rain_today_san_jose
- rain_base: sensor.last_rain_san_jose
- rbase_attr01: total_rain_san_jose_this_week
- rbase_attr02: total_rain_san_jose_this_month
- rbase_attr03: total_rain_san_jose_this_season
- rain_daily_history: sensor.gw1100b_daily_rain_rate
- web_link_01: "[Saratoga Weather Gauges](https://saratoga-weather.org/gauges.php)"
- web_link_02: "[Seasonal Rain from GGW](https://ggweather.com/seasonal_rain.htm)"
- web_link_03: "[Saratoga Creek @ Saratoga](https://water.noaa.gov/gauges/SOGC1)"
- web_link_04: "[San Thomas Aquino Creek @ Williams Road](https://water.noaa.gov/gauges/TMSC1)"
- web_link_05: "[Los Gatos Creek @ Lark Ave](https://water.noaa.gov/gauges/LRKC1)"
# *** HUMIDITY ***
card_mod:
style:
mushroom-shape-icon$: |
{% set last_rain = state_attr('sensor.last_rainfall','last_updated') %}
{% set time_diff = now() - as_datetime(last_rain) %}
{% set mins_diff = (time_diff.total_seconds() / 60) | round(0) %}
{% if mins_diff <= 15 %}
.shape {
--shape-animation: ping 2s infinite;
}
@keyframes ping {
0% {box-shadow: 0 0 0 0 rgba(var(--rgb-red), 0.7);}
70% {box-shadow: 0 0 0 10px transparent;}
100% {box-shadow: 0 0 0 0 transparent;}
}
{% endif %}
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.gw1100b_daily_rain_rate
above: 0.05
card:
type: custom:decluttering-card
template: rain_mini_graph_pacific
variables:
- entity_rain: sensor.gw1100b_daily_rain_rate
#begin Humidity
- type: custom:stack-in-card
cards:
- type: custom:layout-card
layout_type: grid
layout:
grid-template-columns: 10% 18% 24% 24% 24%
grid-template-rows: 1
grid-template-areas: |
"zone1 zone2 zone3 zone4 zone5"
cards:
- type: custom:mushroom-chips-card
chips:
#*** Humidity ***
- type: template
entity: sensor.gw1100b_uv_index
#icon: mdi:water-percent
#icon_color: blue
content: 'Humidity:'
tap_action:
action: more-info
entity: sensor.gw1100b_uv_index
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
view_layout:
grid-area: zone2
- type: custom:mushroom-chips-card
chips:
- type: template
entity: sensor.gw1100b_indoor_humidity
icon: mdi:water-percent
icon_color: blue
content: |
Office: {{ states('sensor.gw1100b_indoor_humidity')}}%
tap_action:
action: more-info
entity: sensor.gw1100b_indoor_humidity
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
view_layout:
grid-area: zone3
- type: custom:mushroom-chips-card
chips:
- type: template
entity: sensor.ecobee_humidity
icon: mdi:water-percent
icon_color: blue
content: |
House: {{ states('sensor.ecobee_humidity')}}%
tap_action:
action: more-info
entity: sensor.ecobee_humidity
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
view_layout:
grid-area: zone4
- type: custom:mushroom-chips-card
chips:
- type: template
entity: sensor.gw1100b_humidity
icon: mdi:water-percent
icon_color: blue
content: |
Outside: {{ states('sensor.gw1100b_humidity')}}%
tap_action:
action: more-info
entity: sensor.gw1100b_humidity
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
view_layout:
grid-area: zone5
# ***** Begin San Jose Sun Section *****
- type: custom:mushroom-template-card
#entity: sensor.gw1100b_outdoor_temperature
primary: |-
{% set elev = states("sensor.sun_solar_elevation") | float() %}
{% if elev >= 0 %}
Sunset {{ states("sensor.sunset_today") }}
{% else %}
Sunrise {{ states("sensor.sunrise_today") }}
{% endif %}
icon: |-
{% set elev = states("sensor.sun_solar_elevation") | float() %}
{% if elev >= 0 %}
mdi:weather-sunset-down
{% else %}
mdi:weather-sunset-up
{% endif %}
icon_color: |-
{% set elev = states("sensor.sun_solar_elevation") | float() %}
{% if elev >= 0 %}
#FF8C00
{% else %}
grey
{% endif %}
secondary: |-
{% set daylight_left = states("sensor.hours_until_next_sun_event") %}
{% set last_light = states("sensor.dusk_today") %}
{% set night_left = states("sensor.hours_until_next_sun_event") %}
{% set first_light = states("sensor.dawn_today") %}
{% set elev = states("sensor.sun_solar_elevation") | float() %}
{% if elev >= 0 %}
In: {{ daylight_left }}, Last Light: {{ last_light }}
{% else %}
In: {{ daylight_left }}, First Light: {{ first_light }}
{% endif %}
tap_action:
action: fire-dom-event
browser_mod:
service: browser_mod.popup
data:
title: Sun Details
content:
type: vertical-stack
cards:
#- type: custom:mushroom-title-card
# title: Now
#subtitle: ""
- type: custom:horizon-card
entity: Sun
moon: true
refresh_period: 60
fields:
sunrise: false
sunset: false
dawn: false
noon: false
dusk: false
#azimuth: true
#sun_azimuth: true
#moon_azimuth: true
#elevation: true
#sun_elevation: true
#moon_elevation: true
moonrise: false
moonset: false
moon_phase: false
southern_flip: false
moon_phase_rotation: -30
language: en
time_format: 12
number_format: comma_decimal
#downtown SJ
latitude: 37.3337
longitude: -121.8907
#latitude: !secret latitude_home
#longitude: !secret longitude_home
elevation: 200
time_zone: America/Los Angeles
#now: 2023-09-24T17:54:05
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
- square: false
columns: 2
type: grid
cards:
- type: custom:mushroom-entity-card
entity: sensor.sun_solar_azimuth
secondary: >-
{{ sensor.sun_solar_azimuth }}
name: Azimuth
icon: mdi:compass-outline
icon_color: blue
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
- type: custom:mushroom-entity-card
entity: sensor.sun_solar_elevation
secondary: >-
{{ sensor.sun_solar_elevation }}
name: Elevation
icon: mdi:sun-angle
icon_color: blue
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
#hide next two if the sun is below the horizon as their values will be zero
#- type: conditional
# conditions:
# - condition: numeric_state
# entity: sensor.sun_solar_elevation
# above: 0
# card:
- type: custom:mushroom-entity-card
entity: sensor.gw1100b_solar_radiation
secondary: >-
{{ sensor.gw1100b_solar_radiation }}
icon_color: blue
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
- type: custom:mushroom-entity-card
entity: sensor.illuminance
secondary: >-
{{ sensor.illuminance }}
icon_color: blue
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
- type: entities
title: Today
entities:
- entity: sensor.dawn_today
name: First Light
- entity: sensor.sunrise_today
name: Sunrise
- entity: sensor.solar_noon_today
name: Solar Noon
- entity: sensor.sunset_today
name: Sunset
- entity: sensor.dusk_today
name: Last Light
- entity: sensor.daylight_length_converted
name: "Total Daylight:"
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
- type: entities
title: Tomorrow
entities:
- entity: sensor.dawn_tomorrow
name: First Light
- entity: sensor.sunrise_tomorrow
name: Sunrise
- entity: sensor.sunset_tomorrow
name: Sunset
- entity: sensor.dusk_tomorrow
name: Last Light
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
card_mod:
style: |
:host {#
/* Remove border from poup */
--popup-padding-x: 0px;
--popup-padding-y: 0px;
--popup-min-width: 450px;
}
- type: conditional
conditions:
- condition: state
entity: sun.sun
state: "above_horizon"
card:
type: custom:stack-in-card
cards:
- type: custom:layout-card
layout_type: grid
layout:
grid-template-columns: 10% 80% 10%
grid-template-rows: 1
grid-template-areas: |
"zone1 zone2 zone3"
cards:
- type: custom:mushroom-chips-card
chips:
#*** UV Index ***
- type: template
entity: sensor.gw1100b_uv_index
icon: mdi:sun-wireless
icon_color: |-
{% set uv_index=states(entity) | int %}
{% if uv_index >= 10 %}
#B54CFF
{% elif uv_index >= 9 %}
#FF0099
{% elif uv_index >= 8 %}
#D8001D
{% elif uv_index >= 7 %}
#E82C0E
{% elif uv_index >= 6 %}
#F85900
{% elif uv_index >= 5 %}
#F88700
{% elif uv_index >= 4 %}
#F8B600
{% elif uv_index >= 3 %}
#F7E400
{% elif uv_index >= 2 %}
#A0CE00
{% else %}
#4EB400
{% endif %}
content: |
{% set uv_index=states(entity) | int %}
{% if uv_index >= 9 %}
UV Index: {{ uv_index }} - Very High, Burn Time: 15-25 Mins
{% elif uv_index >= 7 %}
UV Index: {{ uv_index }} - High, Burn Time: 30 Mins
{% elif uv_index >= 5 %}
UV Index: {{ uv_index }} - Moderate, Burn Time: 45 Mins
{% elif uv_index >= 2 %}
UV Index: {{ uv_index }} - Low, Burn Time: 60 Mins
{% else %}
UV Index: {{ uv_index }} - Yer Good
{% endif %}
tap_action:
action: more-info
entity: sensor.uv_index
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
view_layout:
grid-area: zone2
- type: custom:stack-in-card
cards:
- type: custom:layout-card
layout_type: grid
layout:
grid-template-columns: 10% 80% 10%
grid-template-rows: 1
grid-template-areas: |
"zone1 zone2 zone3"
cards:
- type: custom:mushroom-chips-card
chips:
#*** Moon Chip Card ***
- type: template
entity: sensor.moon
icon: |-
{% set status = states('sensor.moonrise_status') %}
{% set phase = states('sensor.moon') %}
{% if status == 'above_horizon' %}
{% if phase == "full_moon" %}
mdi:moon-full
{% elif phase == "waning_gibbous" %}
mdi:moon-waning-gibbous
{% elif phase == "last_quarter" %}
mdi:moon-last-quarter
{% elif phase == "waning_crescent" %}
mdi:moon-waning-crescent
{% elif phase == "new_moon" %}
mdi:moon-new
{% elif phase == "waxing_crescent" %}
mdi:moon-waxing-crescent
{% elif phase == "first_quarter" %}
mdi:moon-first-quarter
{% elif phase == "waxing_gibbous" %}
mdi:moon-waxing-gibbous
{% endif %}
{% else %}
mdi:weather-moonset-up
{% endif %}
icon_color: |-
{% set sun_status = states('sun.sun') %}
{% set moon_status = states('sensor.moonrise_status') %}
{% if sun_status == 'above_horizon' and moon_status == 'above_horizon' %}
yellow
{% elif sun_status == 'below_horizon' and moon_status == 'above_horizon' %}
blue
{% else %}
#808080
{% endif %}
content: |
{% set full_m = states('sensor.days_until_full_moon') | float() | round(0) %}
{% set status = states('sensor.moonrise_status') %}
{% set m_rise = states('sensor.moonrise_today') %}
{% set m_set = states('sensor.moonset_today') %}
{% if status == 'above_horizon' and full_m >= 2 %}
Moonset {{ m_set }}, Full Moon: {{ full_m }} days
{% elif status == 'above_horizon' and full_m == 1 %}
Moonset {{ m_set }}, Full Moon: Tomorrow
{% elif status == 'above_horizon' and full_m == 0 %}
Moonset {{ m_set }}, Full Moon: Today
{% elif status == 'below_horizon' and full_m == 0 %}
Moonrise {{ m_rise }}, Full Moon: Today
{% elif status == 'below_horizon' and full_m == 1 %}
Moonrise {{ m_rise }}, Full Moon: Tomorrow
{% else %}
Moonrise: {{ m_rise }}, Full Moon: {{ full_m }} days
{% endif %}
tap_action:
action: fire-dom-event
browser_mod:
service: browser_mod.popup
data:
title: Moon Details
content:
type: vertical-stack
cards:
#- type: custom:mushroom-title-card
# title: Now
# #subtitle: ""
#- type: custom:mushroom-title-card
# title: Now
- type: custom:horizon-card
entity: Sun
moon: true
refresh_period: 60
fields:
sunrise: false
sunset: false
dawn: false
noon: false
dusk: false
#azimuth: true
#sun_azimuth: true
#moon_azimuth: true
#elevation: true
#sun_elevation: true
#moon_elevation: true
moonrise: false
moonset: false
moon_phase: false
southern_flip: false
moon_phase_rotation: -30
language: en
time_format: 12
number_format: comma_decimal
#downtown SJ
latitude: 37.3337
longitude: -121.8907
#latitude: !secret latitude_home
#longitude: !secret longitude_home
elevation: 200
time_zone: America/Los Angeles
#now: 2023-09-24T17:54:05
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
- square: false
columns: 2
type: grid
cards:
- type: custom:mushroom-entity-card
entity: sensor.moon_azimuth
secondary: >-
{{ sensor.moon_azimuth }}
name: Azimuth
icon_color: blue
tap_action:
action: more-info
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
- type: custom:mushroom-entity-card
entity: sensor.moon_elevation
secondary: >-
{{ sensor.moon_elevation }}
name: Elevation
icon_color: blue
tap_action:
action: more-info
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
- square: false
columns: 2
type: grid
cards:
- type: custom:mushroom-entity-card
entity: sensor.moonrise_today
secondary: >-
{{ sensor.moonrise_today }}
name: "Moonrise:"
icon_color: blue
tap_action:
action: more-info
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
- type: custom:mushroom-entity-card
entity: sensor.moonset_today
secondary: >-
{{ sensor.moonset_today }}
name: "Moonset:"
icon_color: blue
tap_action:
action: more-info
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
- square: false
columns: 2
type: grid
cards:
- type: custom:mushroom-template-card
#entity: sensor.gw1100b_outdoor_temperature
primary: "Current Phase:"
secondary: |-
{{ states('sensor.moon') | replace("_", " ") | title }}
icon: |-
{% set status = states('sensor.moonrise_status') %}
{% set phase = states('sensor.moon') %}
{% if status == 'above_horizon' %}
{% if phase == "full_moon" %}
mdi:moon-full
{% elif phase == "waning_gibbous" %}
mdi:moon-waning-gibbous
{% elif phase == "last_quarter" %}
mdi:moon-last-quarter
{% elif phase == "waning_crescent" %}
mdi:moon-waning-crescent
{% elif phase == "new_moon" %}
mdi:moon-new
{% elif phase == "waxing_crescent" %}
mdi:moon-waxing-crescent
{% elif phase == "first_quarter" %}
mdi:moon-first-quarter
{% elif phase == "waxing_gibbous" %}
mdi:moon-waxing-gibbous
{% endif %}
{% else %}
mdi:weather-moonset-up
{% endif %}
icon_color: blue
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
- type: custom:mushroom-template-card
#entity: sensor.gw1100b_outdoor_temperature
primary: "Next Phase:"
secondary: |-
{% set next_phase = state_attr('sensor.next_moon_phase_date', 'phase') %}
{% set next_date = states('sensor.next_moon_phase_date') %}
{{ next_phase }} on {{ next_date }}
icon: |-
{% set status = states('sensor.moonrise_status') %}
{% set phase = state_attr('sensor.next_moon_phase_date', 'phase') | replace(" ", "_") | lower %}
{% if status == 'above_horizon' %}
{% if phase == "full_moon" %}
mdi:moon-full
{% elif phase == "waning_gibbous" %}
mdi:moon-waning-gibbous
{% elif phase == "last_quarter" %}
mdi:moon-last-quarter
{% elif phase == "waning_crescent" %}
mdi:moon-waning-crescent
{% elif phase == "new_moon" %}
mdi:moon-new
{% elif phase == "waxing_crescent" %}
mdi:moon-waxing-crescent
{% elif phase == "first_quarter" %}
mdi:moon-first-quarter
{% elif phase == "waxing_gibbous" %}
mdi:moon-waxing-gibbous
{% endif %}
{% else %}
mdi:weather-moonset-up
{% endif %}
icon_color: blue
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
border: none !important;
box-shadow: none !important;
}
view_layout:
grid-area: zone2
- type: custom:tabbed-card
styles:
'--mdc-theme-primary': orange
'--mdc-tab-text-label-color-default': grey
'--mdc-typography-button-font-size': 14px
'--mdc-tab-stacked-height': 55px
'--mdc-tab-height': 40px
tabs:
- card:
type: picture-entity
show_state: false
show_name: false
camera_view: auto
entity: image.noaa_psw_satellite
attributes:
label: Satellite
- card:
type: picture-entity
show_state: false
show_name: false
camera_view: auto
entity: camera.mthamilton_ucolick_org
attributes:
label: Mt. Hamilton
- card:
type: markdown
content: |
**External Resources**
**South Bay:**
<ha-icon icon="mdi:weather-hazy"> </ha-icon> [Mt. Loma Prieta](https://ops.alertcalifornia.org/cam-console/2082)
<ha-icon icon="mdi:weather-hazy"> </ha-icon> [Mt. Hamilton](https://ops.alertcalifornia.org/cam-console/2167)
<ha-icon icon="mdi:weather-hazy"> </ha-icon> [Mt. Rodoni](https://ops.alertcalifornia.org/cam-console/2188)
<ha-icon icon="mdi:weather-hazy"> </ha-icon> [San Jose Foothills](https://ops.alertcalifornia.org/cam-console/2348)
<ha-icon icon="mdi:weather-hazy"> </ha-icon> [Mission Peak 1](https://ops.alertcalifornia.org/cam-console/2127)
<ha-icon icon="mdi:weather-hazy"> </ha-icon> [Mt. Allison](https://ops.alertcalifornia.org/cam-console/2147)
<ha-icon icon="mdi:weather-hazy"> </ha-icon> [Sunol Ridge](https://ops.alertcalifornia.org/cam-console/2600)
**San Francisco:**
<ha-icon icon="mdi:weather-hazy"> </ha-icon> [SF - Sutro Tower 1](https://ops.alertcalifornia.org/cam-console/2428)
<ha-icon icon="mdi:weather-hazy"> </ha-icon> [SF - Sutro Tower 2](https://ops.alertcalifornia.org/cam-console/242)
card_mod:
style:
mushroom-state-info$: |
.: |
ha-card {
margin-top: -0.3em !important;
border: none !important;
box-shadow: none !important;
}
attributes:
label: Links
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.pw_san_jose_precip_probability
above: 5
card:
type: custom:tabbed-card
styles:
'--mdc-theme-primary': orange
'--mdc-tab-text-label-color-default': grey
'--mdc-typography-button-font-size': 14px
'--mdc-tab-stacked-height': 55px
'--mdc-tab-height': 40px
tabs:
- card:
type: iframe
aspect_ratio: 90%
url: https://embed.windy.com/embed.html?type=map&location=coordinates&metricRain=default&metricTemp=default&metricWind=default&zoom=8&overlay=radar&product=radar&level=surface&lat=37.529&lon=-122.198&pressure=true&message=true&play=1
attributes:
label: Radar
- card:
type: iframe
aspect_ratio: 90%
url: https://embed.windy.com/embed.html?type=map&location=coordinates&metricRain=default&metricTemp=default&metricWind=default&zoom=8&overlay=wind&product=ecmwf&level=surface&lat=37.529&lon=-122.198&pressure=true&message=true
attributes:
label: Wind
- card:
type: iframe
aspect_ratio: 90%
url: https://embed.windy.com/embed2.html?lat=37.335480&lon=-121.893028&zoom=8&level=surface&overlay=temp&menu=&message=&marker=&calendar=&pressure=&type=map&location=coordinates&detail=&detailLat=39.028&detailLon=-124.585&metricWind=mph&metricTemp=%C2%B0F&radarRange=-1
attributes:
label: Region Temp
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.pw_san_jose_cloud_coverage
above: 10
card:
type: custom:tabbed-card
styles:
'--mdc-theme-primary': orange
'--mdc-tab-text-label-color-default': grey
'--mdc-typography-button-font-size': 14px
'--mdc-tab-stacked-height': 55px
'--mdc-tab-height': 40px
tabs:
- card:
type: iframe
aspect_ratio: 90%
url: https://embed.windy.com/embed.html?type=map&location=coordinates&metricRain=default&metricTemp=default&metricWind=default&zoom=8&overlay=clouds&product=clouds&level=surface&lat=37.529&lon=-122.198&pressure=true&message=true
attributes:
label: Clouds
- card:
type: iframe
aspect_ratio: 90%
url: https://embed.windy.com/embed.html?type=map&location=coordinates&metricRain=default&metricTemp=default&metricWind=default&zoom=8&overlay=wind&product=ecmwf&level=surface&lat=37.529&lon=-122.198&pressure=true&message=true
attributes:
label: Wind
- card:
type: iframe
aspect_ratio: 90%
url: https://embed.windy.com/embed2.html?lat=37.335480&lon=-121.893028&zoom=8&level=surface&overlay=temp&menu=&message=&marker=&calendar=&pressure=&type=map&location=coordinates&detail=&detailLat=39.028&detailLon=-124.585&metricWind=mph&metricTemp=%C2%B0F&radarRange=-1
attributes:
label: Region Temp
- type: conditional
conditions:
- condition: numeric_state
entity: sensor.outdoor_temperature_merged
above: 75
card:
type: custom:tabbed-card
styles:
'--mdc-theme-primary': orange
'--mdc-tab-text-label-color-default': grey
'--mdc-typography-button-font-size': 14px
'--mdc-tab-stacked-height': 55px
'--mdc-tab-height': 40px
tabs:
- card:
type: iframe
aspect_ratio: 90%
url: https://embed.windy.com/embed2.html?lat=37.265480&lon=-121.953028&zoom=12&level=surface&overlay=temp&menu=&message=&marker=&calendar=&pressure=&type=map&location=coordinates&detail=&detailLat=39.028&detailLon=-124.585&metricWind=mph&metricTemp=%C2%B0F&radarRange=-1
attributes:
label: City Temp
- card:
type: iframe
aspect_ratio: 90%
url: https://embed.windy.com/embed2.html?lat=37.335480&lon=-121.893028&zoom=8&level=surface&overlay=temp&menu=&message=&marker=&calendar=&pressure=&type=map&location=coordinates&detail=&detailLat=39.028&detailLon=-124.585&metricWind=mph&metricTemp=%C2%B0F&radarRange=-1
attributes:
label: Region Temp
- card:
type: iframe
aspect_ratio: 90%
url: https://embed.windy.com/embed.html?type=map&location=coordinates&metricRain=default&metricTemp=default&metricWind=default&zoom=8&overlay=wind&product=ecmwf&level=surface&lat=37.529&lon=-122.198&pressure=true&message=true
attributes:
label: Wind
- type: map
name: Earthquakes
geo_location_sources:
- usgs_earthquakes_feed
entities:
- zone.home
title: Earthquakes - Past Week
attributes:
label: San Jose
